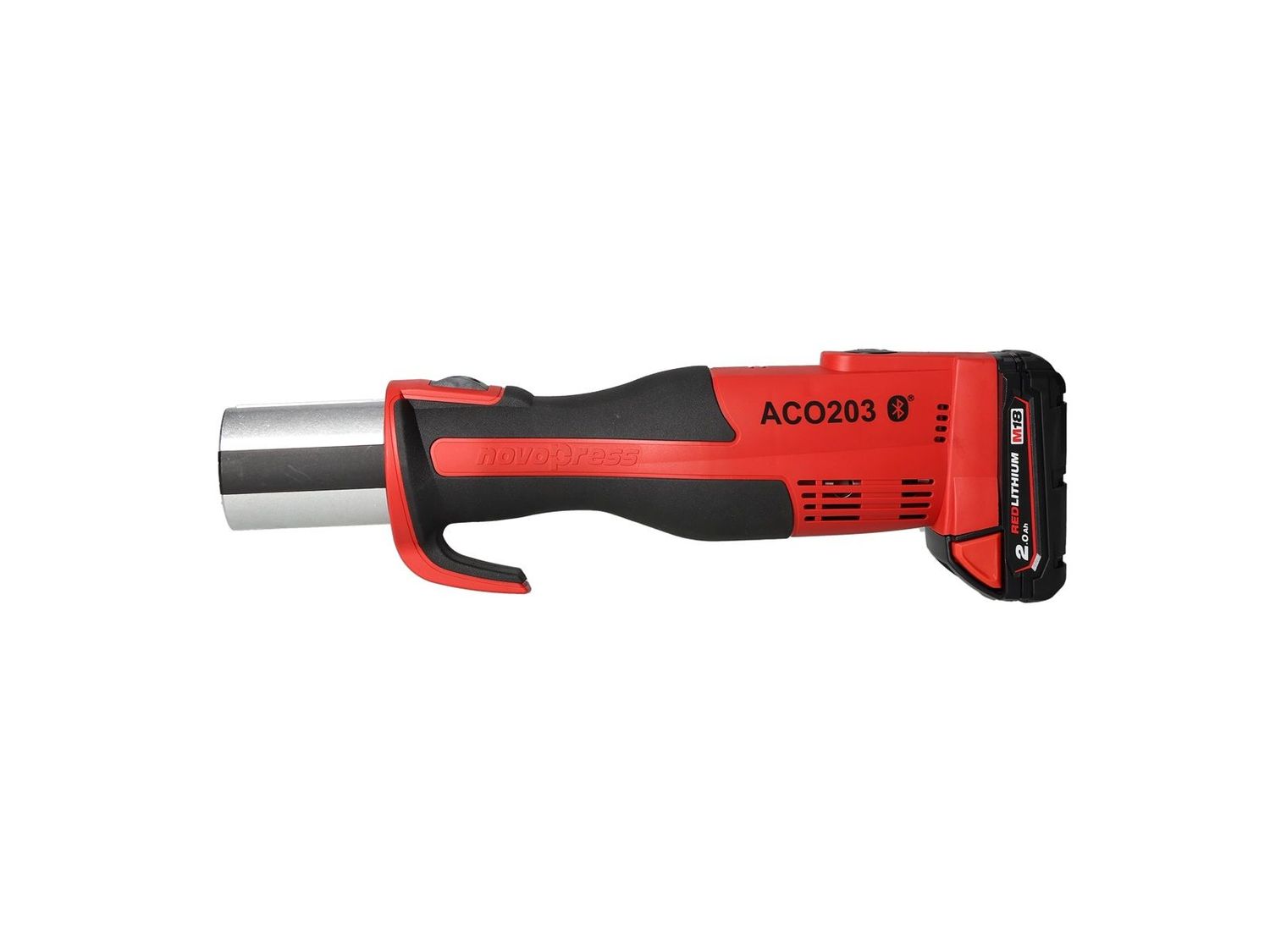

Pipe Press Tool NOVOPRESS ACO203BT 1xM18B2 2.0Ah

Purpose: radial pressing of installation fittings

Scope of delivery: drive unit in a case, 18V/2Ah lithium-ion battery, charger

• hydraulic drive; 450W power; pressing force 32 kN
• automatic piston return
• possibility to stop the pressing cycle at any moment
• start lock if the jaw clamp pin is not closed
• ergonomic shape, housing covered with anti-slip material
• pressing area illuminated by 2 LED lights
• M18 batteries with charge indicator (charging time approx. 45 minutes)
• batteries available in various capacities (depending on fitting type and battery capacity – up to 250 pressing cycles per charge)
• Bluetooth® 4.0 connection and NovoCheck app allow pairing with phone, tablet etc. (Android, iOS systems)
• NovoCheck app allows: reading device data, checking technical status, configuring settings, creating construction site reports
• LED display monitors battery charge, clamp pin position, operation errors and maintenance need
• weight without battery: 2.3 kg; length with battery: 39 cm

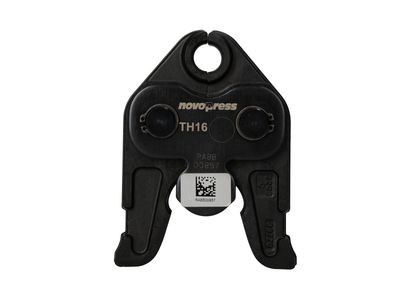

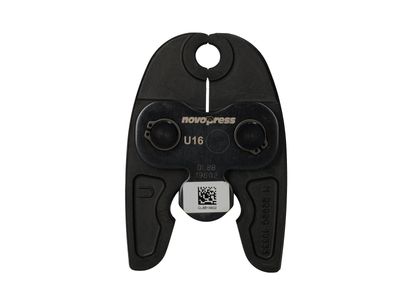

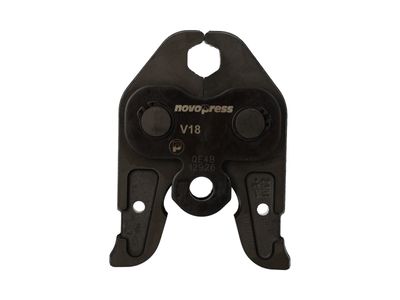

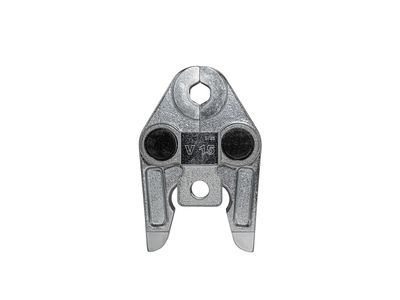

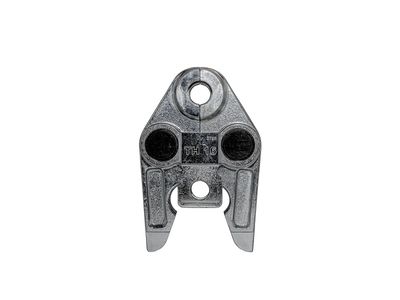

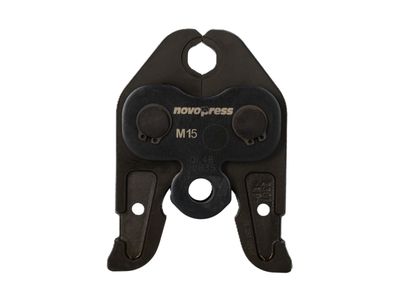

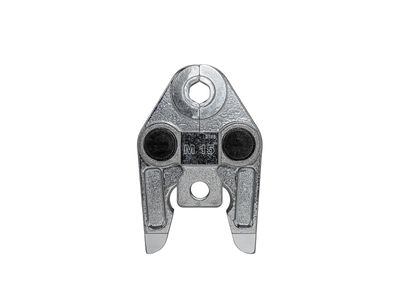

• compatible with Novopress PB2 jaws and:
  • Novopress rings V64–108 and U75–110 (with intermediate jaw ZB202)
  • Novopress rings M42–54, V42–54, TH40–63, U40–63 (with intermediate jaw ZB203)
  • angled press rings M15-35; V15-35, TH16-32 (using intermediate jaw SZB201)
  • jaws of other manufacturers approved by the fitting manufacturer

Unconditional 2-year warranty(can be extended to 3 years with annual inspections)
